A002
■ 主要参数 Major Parameters(6431)
| No. | d | E | A | T | 4-Φd1 | |||||
| 1 | 32 | 44x44 | 32.5×32.5 | 8.2 | 5.1 | |||||
| 2 | 40 | 51x51 | 38x38 | 11 | 5.1 | |||||
| 3 | 50 | 64x64 | 46.5x46.5 | 17 | 6.7 | |||||
| 4 | 63 | 75×75 | 56.5x56.5 | 26 | 6.7 | |||||
| 5 | 80 | 93x93 | 72x72 | 28 | 8.7 | |||||
| 6 | 100 | 111x111 | 89×89 | 35 | 8.7 | |||||
| 7 | 125 | 134x134 | 110x110 | 55 | 10.3 | |||||
A010
■ 主要参数 Major Parameters(6430)
| No. | d | E | A | T | 4-Φd1 | |||||
| 1 | 32 | 43.5x43.5 | 33x33 | 8.4 | 5.5 | |||||
| 2 | 40 | 50x50 | 37x37 | 10.9 | 5.5 | |||||
| 3 | 50 | 61×61 | 47x47 | 17 | 5.5 | |||||
| 4 | 63 | 74x74 | 56x56 | 25.5 | 7.4 | |||||
| 5 | 80 | 93x93 | 70×70 | 27.9 | 9.3 | |||||
| 6 | 100 | 111x111 | 84x84 | 35 | 9.3 | |||||

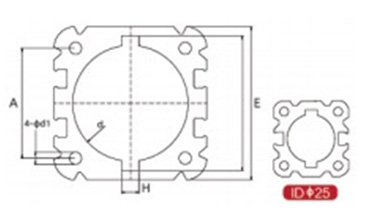

A027
■ 主要参数 Major Parameters
| No. | d | E | A | H | 4-Φd1 |
| 1 | 25 | 39*39 | 28*28 | 6 | 4.5 |
| 2 | 32 | 45*45 | 32.5*32.5 | 8.5 | 5.2 |
| 3 | 40 | 53*53 | 38*38 | 6 | 4.2 |
| 4 | 50 | 64*64 | 46.5*46.5 | 10 | 6.8 |
| 5 | 63 | 75*75 | 56.5*56.5 | 10 | 6.65 |
| 6 | 80 | 93*93 | 72*72 | 10 | 8.7 |
| 7 | 100 | 110*110 | 89*89 | 12 | 8.38 |

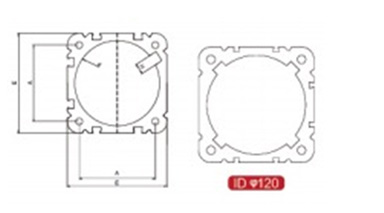

A028
■ 主要参数 Major Parameters
| No. | d | E | A | H | 4-Φd1 |
| 1 | 50 | 63*63 | 46.5*46.5 | 6.5 | 5 |
| 2 | 63 | 74*74 | 56.5*56.5 | 8 | 5 |
| 3 | 80 | 92*92 | 72*72 | 10 | 6.8 |
| 4 | 100 | 109*109 | 89*89 | 10 | 6.8 |
| 5 | 120 | 140*140 | 109*109 | 15 | 10.2 |
