产品详情
|

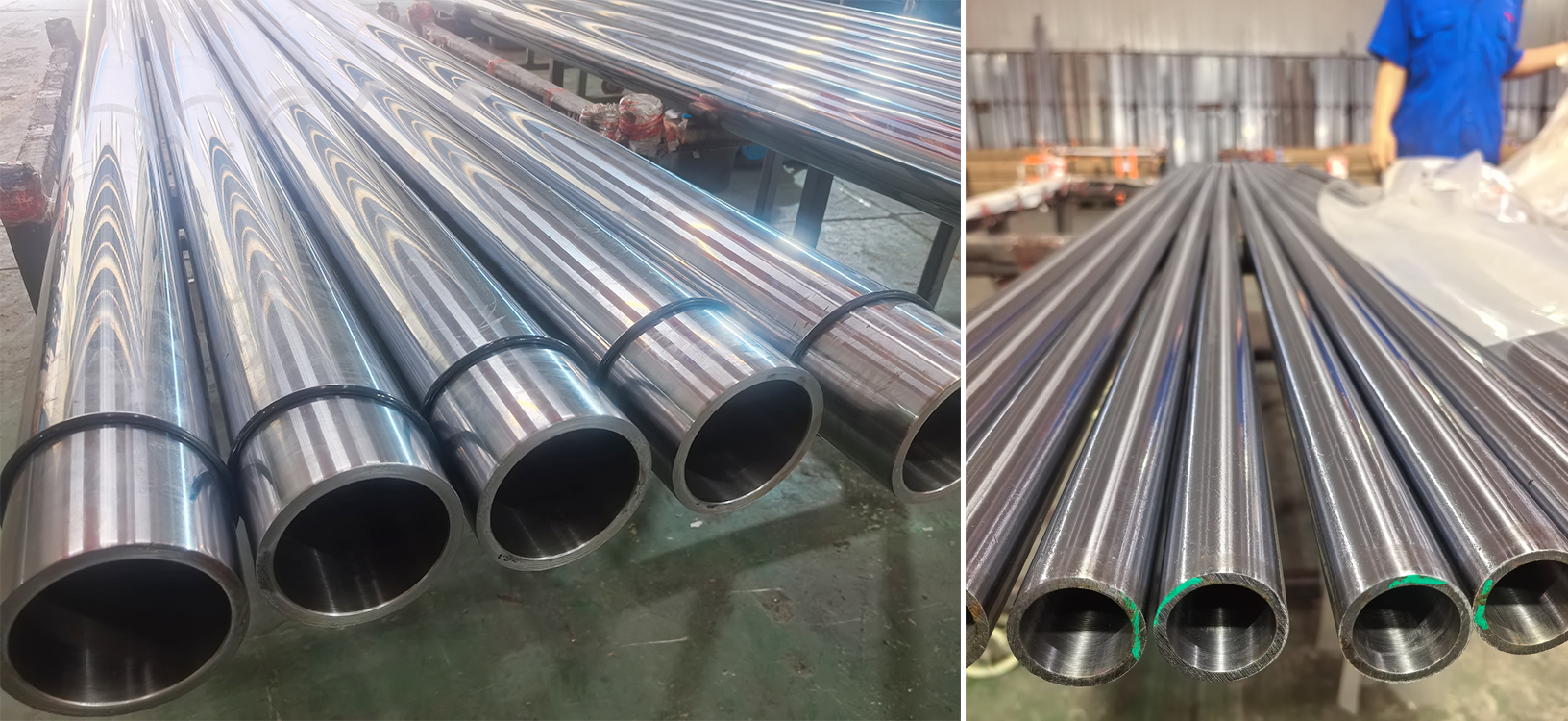

不锈钢电缸推杆 Stainless Steel Electrical Cylinder Hollow Rod |
||||||||
| Material |
内径(mm) ID |
外径(mm) OD |
壁厚(mm) Wall Thickness |
重量(Kg) Weightness |
标准长度(mm) Standard Length |
外径公差 OD Tolerance |
内孔光洁度 ID Surface Roughness |
电镀前外径表面光洁度 Before Chrome Plated OD Surface Roughness |
| 304/316L | 13 | 18 | 2.5 | 1.00 | 2000 |
ISO f7, f8 按客户需求订制 ISO f7, f8, On Request |
R a ≤ 0.4 | Ra ≤ 0.4 |
| 304/316L | 16 | 20 | 2 | 0.93 | 3000 | |||
| 304/316L | 20 | 25 | 2.5 | 1.45 | 3000 | |||
| 304/316L | 25 | 30 | 2.5 | 1.77 | 3450 | |||
| 304/316L | 30 | 40 | 5 | 4.51 | 3000 | |||
| 304/316L | 32 | 38 | 3 | 2.70 | 3000 | |||
| 304/316L | 35 | 45 | 5 | 5.15 | 3000 | |||
| 304/316L | 40 | 50 | 5 | 5.79 | 3000 | |||
| 304/316L | 45 | 55 | 5 | 6.44 | 3000 | |||
| 304/316L | 50 | 60 | 5 | 7.08 | 3000 | |||
| 304/316L | 55 | 70 | 7.5 | 12.07 | 3000 | |||
| 304/316L | 90 | 120 | 15 | 40.56 | 3000 | |||
|
备注：不锈钢精轧管外表可以电镀，通常电镀镀层厚度是15µm，电镀层也可以根据客户的要求选择相应的厚度。电镀后，外表面的光洁度 Ra ≤ 0.2 Note: Surface of Stainless Steel tube can be Chrome Plated, Usually the Chrome Plated layer thickness is 15µm, In addition, Chrome Layer Thickness can be selected by Customers. After the chrome plated, the surface roughness is Ra ≤ 0.2 |
||||||||
|
电缸推杆 Electrical Cylinder Hollow Rod |
|||||||
|
材料 Material |
内径 ID (mm) | 外径 OD (mm) | 壁厚 Wall Thickness (mm) | 重量 Weight (kg) |
内径公差 ID Tolerance |
外径公差 OD Tolerance |
电镀层厚度 Chrome Layer Thickness |
|
20 号钢 / 45 钢 / 16Mn 1020/1045/E355(ST52) |
17 | 25 | 4 | 2.13 |
精轧管公差: ±0.1 珩磨管: H8 |
ISO f7, f8 按客户需求订制 / On Request |
Min. 20 μm On Request |
| 17 | 30 | 6.5 | 3.87 |
精轧管公差: ±0.1 珩磨管: H8 |
ISO f7, f8 按客户需求订制 / On Request |
Min. 20 μm On Request |
|
| 19 | 35 | 8 | 5.48 |
精轧管公差: ±0.1 珩磨管: H8 |
ISO f7, f8 按客户需求订制 / On Request |
Min. 20 μm On Request |
|
| 28 | 40 | 6 | 5.18 |
精轧管公差: ±0.1 珩磨管: H8 |
ISO f7, f8 按客户需求订制 / On Request |
Min. 20 μm On Request |
|
| 26 | 40 | 7 | 5.86 |
精轧管公差: ±0.1 珩磨管: H8 |
ISO f7, f8 按客户需求订制 / On Request |
Min. 20 μm On Request |
|
| 28 | 40 | 6 | 5.18 |
精轧管公差: ±0.1 珩磨管: H8 |
ISO f7, f8 按客户需求订制 / On Request |
Min. 20 μm On Request |
|
| 35 | 50 | 7.5 | 8.09 |
精轧管公差: ±0.1 珩磨管: H8 |
ISO f7, f8 按客户需求订制 / On Request |
Min. 20 μm On Request |
|
| 40 | 50 | 5 | 5.71 | H8 |
ISO f7, f8 按客户需求订制 / On Request |
Min. 20 μm On Request |
|
| 45 | 55 | 5 | 6.34 | H8 |
ISO f7, f8 按客户需求订制 / On Request |
Min. 20 μm On Request |
|
| 48 | 60 | 6 | 8.22 | H8 |
ISO f7, f8 按客户需求订制 / On Request |
Min. 20 μm On Request |
|
| 48 | 65 | 8.5 | 12.19 | H8 |
ISO f7, f8 按客户需求订制 / On Request |
Min. 20 μm On Request |
|
| 50 | 60 | 5 | 6.98 | H8 |
ISO f7, f8 按客户需求订制 / On Request |
Min. 20 μm On Request |
|
| 50 | 65 | 7.5 | 10.95 | H8 |
ISO f7, f8 按客户需求订制 / On Request |
Min. 20 μm On Request |
|
| 60 | 80 | 10 | 17.77 | H8 |
ISO f7, f8 按客户需求订制 / On Request |
Min. 20 μm On Request |
|
| 70 | 90 | 10 | 20.31 | H8 |
ISO f7, f8 按客户需求订制 / On Request |
Min. 20 μm On Request |
|
| 80 | 100 | 10 | 22.85 | H8 |
ISO f7, f8 按客户需求订制 / On Request |
Min. 20 μm On Request |
|
| 100 | 120 | 10 | 27.93 | H8 |
ISO f7, f8 按客户需求订制 / On Request |
Min. 20 μm On Request |
|
