Product Details

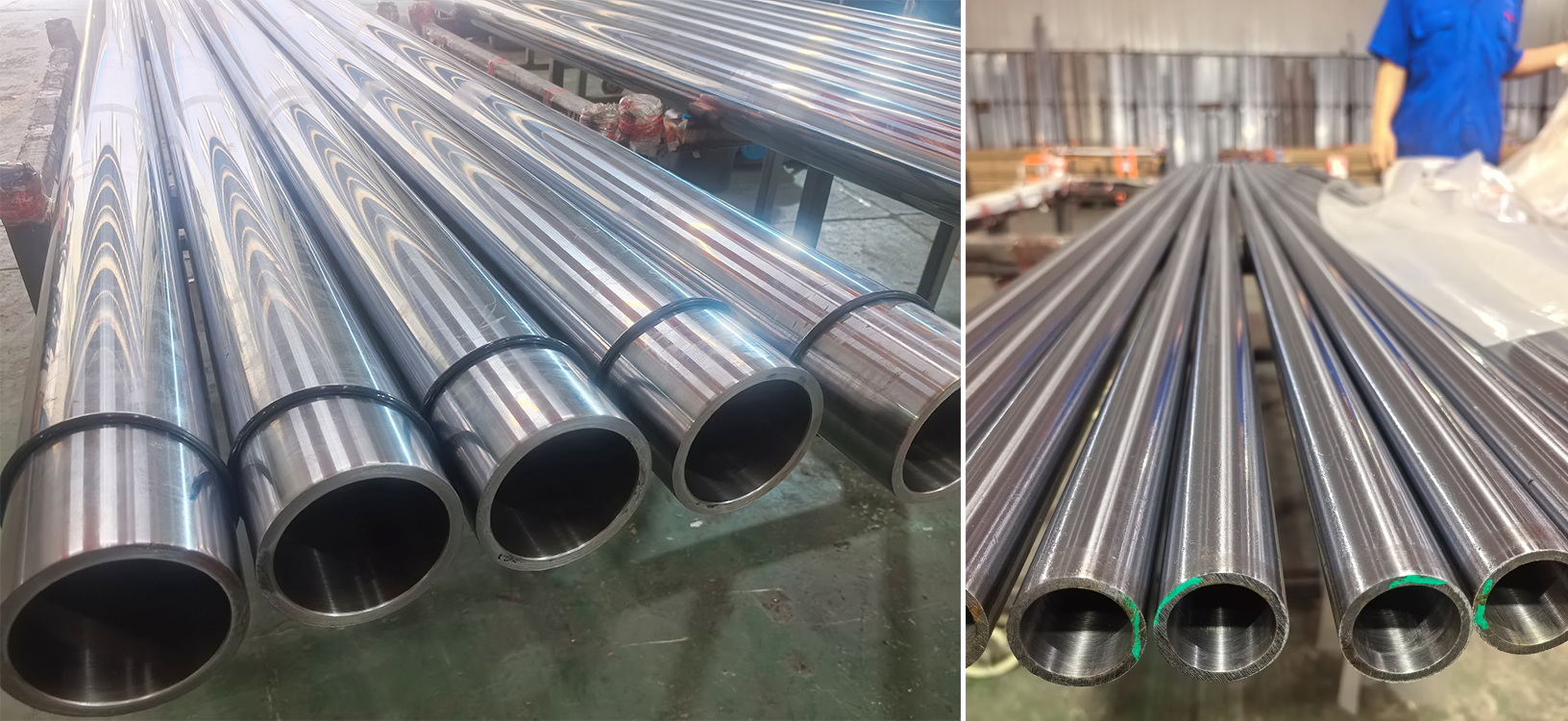

| Stainless Steel Electrical Cylinder Hollow Rod | ||||||||
| Material |
ID(mm) |
OD(mm) |
Wall Thickness(mm) |
Weightness(Kg) |
Standard Length(mm) |
OD Tolerance | ID Surface Roughness |
Before Chrome Plated OD Surface Roughness |
| 304/316L | 13 | 18 | 2.5 | 1.00 | 2000 |
ISO f7, f8, On Request |
R a ≤ 0.4 | Ra ≤ 0.4 |
| 304/316L | 16 | 20 | 2 | 0.93 | 3000 | |||
| 304/316L | 20 | 25 | 2.5 | 1.45 | 3000 | |||
| 304/316L | 25 | 30 | 2.5 | 1.77 | 3450 | |||
| 304/316L | 30 | 40 | 5 | 4.51 | 3000 | |||
| 304/316L | 32 | 38 | 3 | 2.70 | 3000 | |||
| 304/316L | 35 | 45 | 5 | 5.15 | 3000 | |||
| 304/316L | 40 | 50 | 5 | 5.79 | 3000 | |||
| 304/316L | 45 | 55 | 5 | 6.44 | 3000 | |||
| 304/316L | 50 | 60 | 5 | 7.08 | 3000 | |||
| 304/316L | 55 | 70 | 7.5 | 12.07 | 3000 | |||
| 304/316L | 90 | 120 | 15 | 40.56 | 3000 | |||
| Note: Surface of Stainless Steel tube can be Chrome Plated, Usually the Chrome Plated layer thickness is 15µm, In addition, Chrome Layer Thickness can be selected by Customers. After the chrome plated, the surface roughness is Ra ≤ 0.2 | ||||||||
