Product Details

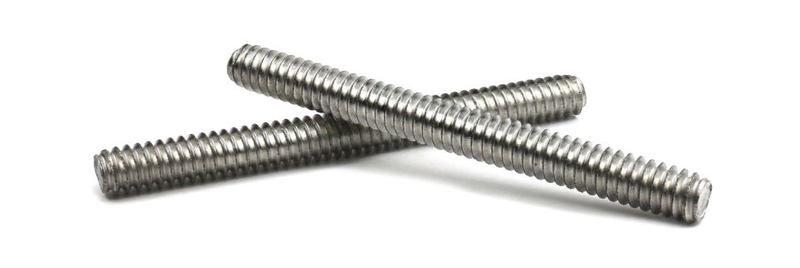

Fully Threaded Stud
Hexagon Head Bolt
Hexagon Nut
Anchor Bolt
Shoulder Stud Bolt
Customized according to customer requirements
| Nominal Diameter | Overall Length | Thread | Performance Grade |
| M8-M130 | 28～5000 | 6g |
6.8 8.8 10.9 12.9 A2-50 A2-70 |

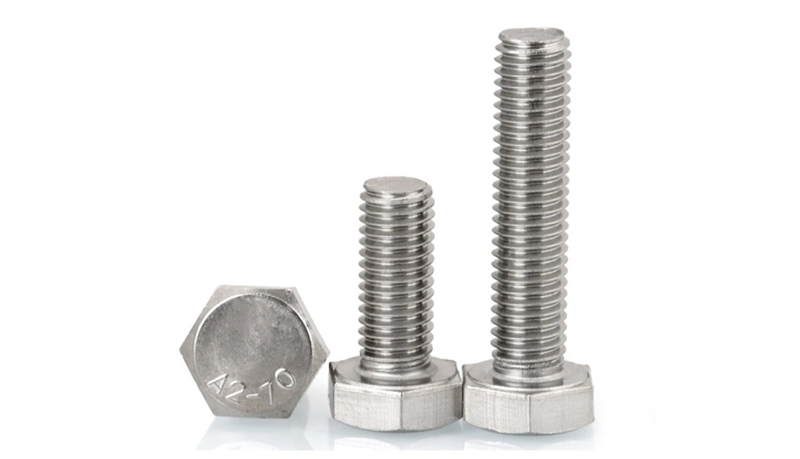

Hexagon Head Bolt
| Nominal Diameter (mm) | Nominal Length (mm) | Head Height (mm) | Across Flats Width (mm) | Thread | Material | Performance Grade |
| 8~64 | 35~800 | 5.3~40 | 13~95 | 6g |
Steel Stainless Steel |
8.8 10.9 A2-50 A2-70 As Per Agreement |
| 8~64 | 16~800 | 5.3~40 | 13~95 | 8.8S 10.9S | ||
| 12~30 | 35~260 | 7.5~18.7 | 21~50 | Steel | As Per Standard | |
| 12~30 | 35~260 | 7.5~18.7 | 21~50 | Steel | ||
| 10~48 | 40~800 | 6.4~30 | 18~75 |
Steel Stainless Steel |
||
| 10~56 | 40~800 | 6.4~35 | 16~85 |
8.8 A2-50 A2-70 |
||
| 14~33 | 50~800 | 8.8~21 | 21~50 |

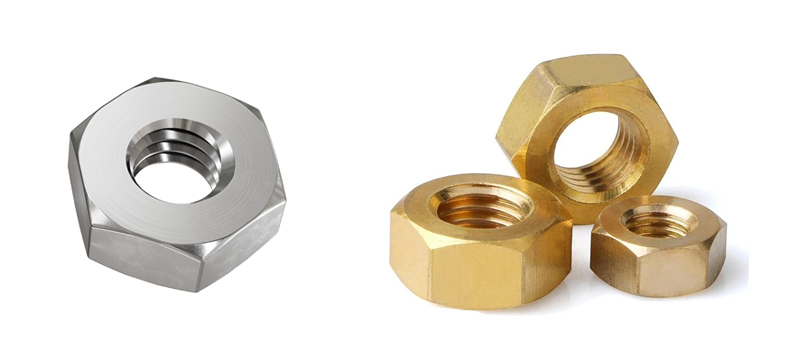

Hexagon Nut
| Nominal Diameter (mm) | Nut Height (mm) | Across-flat Dimension (mm) | Thread | Material | Property Class |
| 8~64 | 6.8~51 | 13~95 | 6H | Steel | 6, 8, 10 As Agreed |
| 8~64 | 6.8~51 | 13~95 | Steel, Stainless Steel |
6, 8, 10 As Agreed A2-50 A2-70 |
|
| 8~36 | 7.5~34.1 | 13~55 | Steel, Copper | 9～12 | |
| 8~36 | 7.5~34.1 | 13~55 | 8, 10, 12 | ||
| 14~56 | 14~56 | 22~85 | 6(H) |
Steel, Copper Stainless Steel |
Specified by Standards |
| 10~90 | 8.4(10.3)~72(90.5) | 18~130 | 6H | ||
| 10~56 | 8.4~45 | 16~85 | Commercial Grade: 8 | ||
| 14~90 | 12.8(14.3)~90.5 | 21(24)~130 | Commercial Grade: 10, A2-50, A2-70 | ||
| 20~160 | 45~300 | 22~140 | As Specified | ||
| 12~30 | 12~30 | 21~50 | Steel, Copper | 8H, 10H | |
| 12~130 | 8~130 | 12~190 | Specified by Standards |

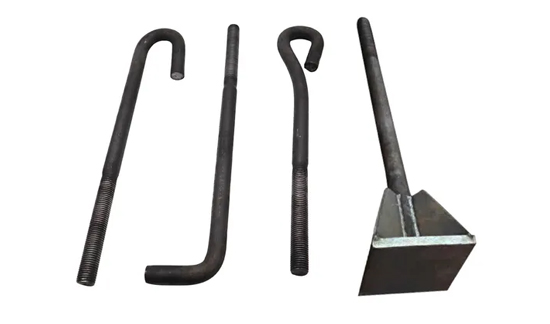

Anchor Bolt
| Nominal Diameter | Overall Length | Thread | Performance Grade |
| M6-M130 | 50-3000 | 6g | As Required |

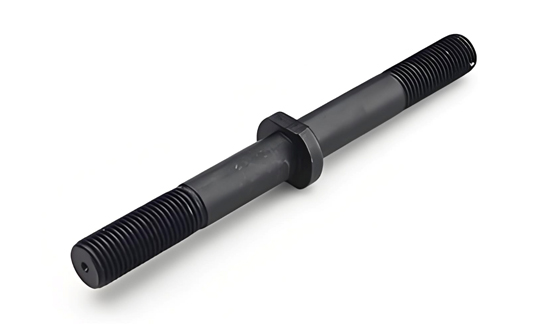

Shoulder Stud Bolt
Customized according to customer requirements
